P130

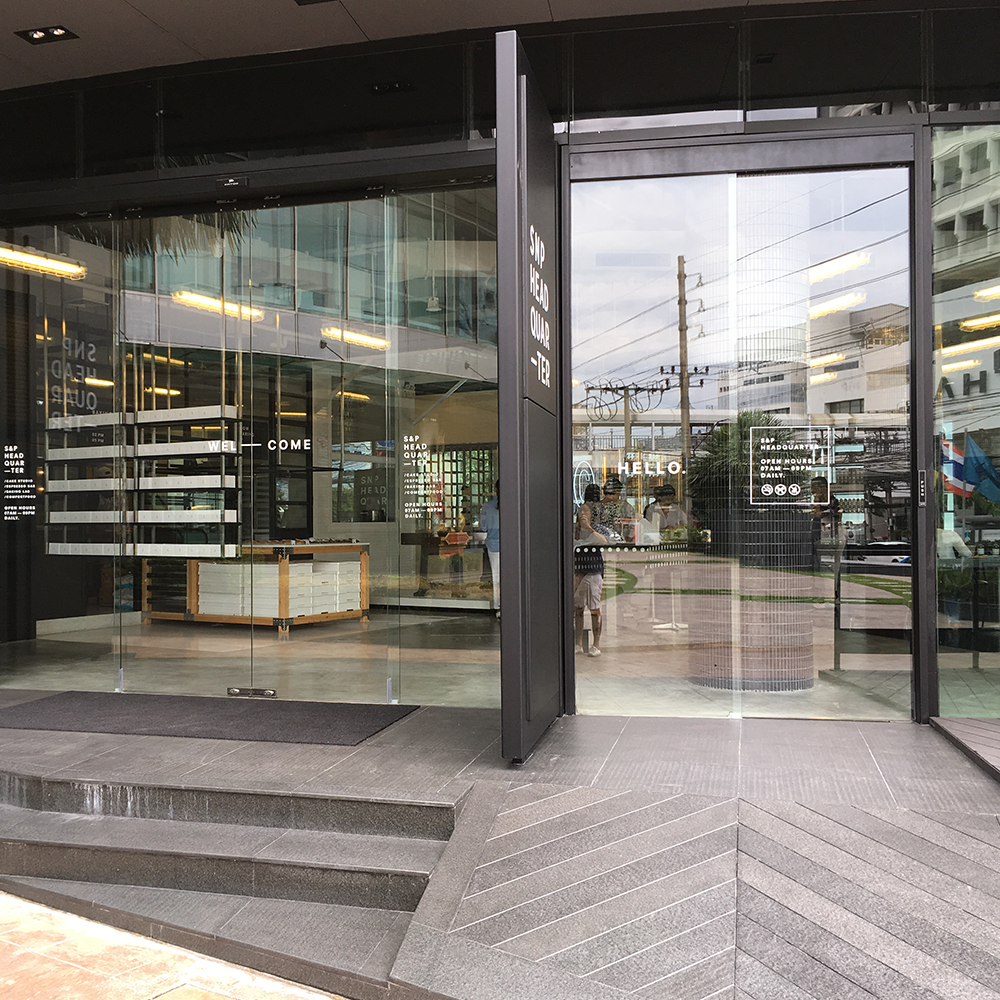

Areas of application eternal and internal doors
- slim design
- compact configuration
- linear
- telescopeetrical emergency operation
- frameless
- RER
Options
- operating unit with 5 operating modes
- eletro-mechanical lock
- magnetical interlock
- electrical emergency operation
- air lock / porch wind screen function
- bell trigger
Drive type
- electro-mechanical
Motor DC motor 24V DC
Control system Microcomputer 16 bits (AD series)
Mains connection 1 x 230/1 x 115V AC , 50 ...60Hz , 220VA
Power consumption 13 ...200 W
Inputs 6 programmable inputs of which
4 testable safety features
Outputs 2 programmable outputs
Sensor power supply 324V DC/1,0 A
Safety facilities the necessary sensors can be connected ,
monitored force limitation
Interfaces RS232
Approvals CE, TUV
Standards EN 60335-1 , EN 61000-6-2 , EN 61000-6-3
Protective class (drive) IP 23
Ambient temperature -20 C to + 50 C
Dimensions
Cross-section of header profile (HxD) 120 x 165 mm
Cross-section of header profile telescope (HxD) 120 x 220 mm
System length, one leaf min 1706 mm
System length, two leaves min 1766 mm
System length, telescope, two leaves min 1406 mm
System length, telescope, four leaves min 2586 mm
Maximum leaf weights
One leaf < 1 x 150 kg
Two leavwa < 1 x 130 kg
Telescope, two leaves < 2 x 80 kg
Telescope, four leaves < 2 x 80 kg
Opening widths
One leaf 800 ...2200 mm
Two leaves 800 ...2900 mm
Telescope, two leaves 800 ...2900 mm
Telescope, four leaves 1500 ...3800 mm
Opening speed 1 ...80 cm/s
Closing speed 1 ...80 cm/s
Per door leaf, dependent on the door weight, opening width and the prevailing regulations
